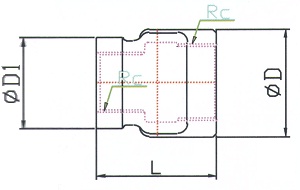

口徑
Port Size
|
L
mm
|
D
mm
|
D1
mm
|
| 1/4"x1/8" |
28.5 |
18 |
14 |
| 3/8"x1/8" |
41 |
23 |
14 |
| 3/8"x1/4" |
41 |
25 |
20 |
| 1/2"x1/4" |
45 |
20 |
18 |
| 1/2"x3/8" |
45 |
28 |
23 |
| 3/4"x1/8" |
38 |
33 |
14 |
| 3/4"x1/4" |
38 |
33 |
18 |
| 3/4"x3/8" |
38 |
33 |
23 |
| 3/4"x1/2" |
38 |
33 |
28 |
| 1"x1/4" |
43 |
41 |
18 |
| 1"x3/8" |
43 |
41 |
23 |
| 1"x1/2" |
43 |
41 |
28 |
| 1"x3/4" |
43 |
41 |
33 |
| 1 1/4"x1/2" |
50 |
50 |
35 |
| 1 1/4"x3/4" |
50 |
50 |
33 |
| 1 1/4"x1" |
50 |
50 |
41 |
| 1 1/2"x1/2" |
53 |
58 |
28 |
| 1 1/2"x3/4" |
53 |
58 |
33 |
| 1 1/2"x1" |
50 |
58 |
41 |
| 1 1/2"x1 1/4" |
53 |
58 |
50 |
| 2"x1/2" |
55 |
70 |
28 |
|
口徑
Port Size
|
L
mm
|
D
mm
|
D1
mm
|
| 2"x3/4" |
55 |
70 |
33 |
| 2"x1" |
55 |
70 |
41 |
| 2"x1 1/4" |
55 |
70 |
50 |
| 2"x1 1/2" |
55 |
70 |
58 |
| 2 1/2"x1/2" |
60 |
85 |
28 |
| 2 1/2"x3/4" |
60 |
85 |
33 |
| 2 1/2"x1" |
60 |
85 |
41 |
| 2 1/2"x1 1/4" |
60 |
85 |
50 |
| 2 1/2"x1 1/2" |
60 |
85 |
58 |
| 2 1/2"x2" |
65 |
85 |
70 |
| 3"x1/2" |
68 |
100 |
28 |
| 3"x3/4" |
68 |
100 |
33 |
| 3"x1" |
68 |
100 |
41 |
| 3"x1 1/4" |
68 |
100 |
50 |
| 3"x1 1/2" |
68 |
100 |
58 |
| 3"x2" |
68 |
100 |
70 |
| 3"x2 1/2" |
68 |
100 |
85 |
| 4"x1 1/2" |
72 |
128 |
58 |
| 4"x2" |
72 |
128 |
70 |
| 4"x2 1/2" |
72 |
128 |
85 |
| 4"x3" |
72 |
128 |
100 |
|
