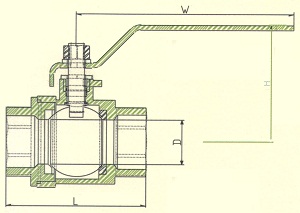

二片式全流量1000 WOG球閥
2PC FULL PORT 1000 WOG BALL VALVE
|
|
|
口徑
Port Size
|
D
mm
|
L
mm
|
H
mm
|
W
mm
|
CV值
CV Factor
|
扭力
Torque N.M
|
重量
Weight
g
|
| 1/4" |
10.5 |
48.5 |
54 |
98 |
6 |
3 |
0.23 |
| 3/8" |
11.6 |
48.5 |
54 |
98 |
7 |
3 |
0.17 |
| 1/2" |
15 |
59.5 |
62 |
100 |
10 |
4 |
0.27 |
| 3/4" |
20 |
64 |
66 |
120 |
25 |
7.5 |
0.41 |
| 1" |
25 |
77 |
77 |
124 |
35 |
10 |
0.6 |
| 1 1/4" |
32 |
89 |
80 |
150 |
46 |
12 |
1.07 |
| 1 1/2" |
38 |
98 |
91 |
153 |
80 |
15 |
1.37 |
| 2" |
50 |
121 |
98 |
153 |
110 |
25 |
2.53 |
| 2 1/2" |
65 |
158 |
138 |
246 |
310 |
38 |
5.58 |
| 3" |
80 |
186 |
149 |
246 |
360 |
72 |
9.2 |
|
|
|
| |
|
|
|
|
