專利旋轉接頭(鋼)
BALL SWIVEL JOINTS(steel)
內部附有雙滾珠環槽，具有軸承功能，可使運轉平穩持久。 |
|
|

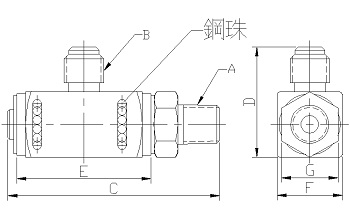

型式
Model
|
A |
B |
C
mm |
D
mm |
E
mm |
F
mm |
G
mm |
最大壓力
Max Pressure |
最高轉速
Max Rotation Speed |
| BJ-02T |
PT 1/4" |
PT 1/4" |
71 |
37 |
45 |
22 |
19 |
210 kg/cm2
3000 psi
|
12 RPM |
| BJ-03T |
PT 3/8" |
PT 3/8" |
78 |
41.5 |
48 |
25 |
22 |
| BJ-04T |
PT 1/2" |
PT 1/2" |
91 |
49 |
58 |
30 |
27 |
| BJ-06T |
PT 3/4" |
PT 3/4" |
104 |
64 |
64 |
37 |
35 |
| BJ-08T |
PT 1" |
PT 1" |
125 |
74 |
76 |
45 |
41 |
| BJ-10T |
PT 1 1/4" |
PT 1 1/4" |
137 |
81 |
88 |
50 |
50 |
|
|
| VITON為特殊材質(Material)可耐溫250度C。 |
| 另有白鐵材質。 |
|
|
|
